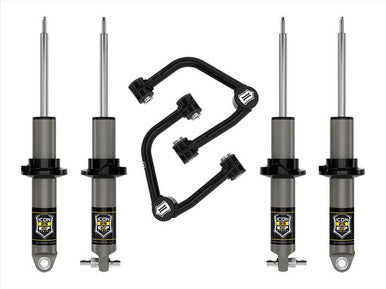

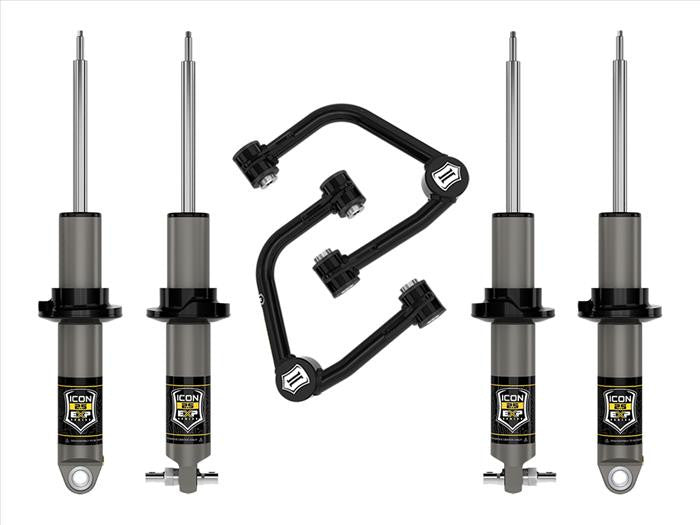

2021+ Ford Bronco Hoss 2.0 Pkg Stage 2 Suspension System Tubular UCA (2- 3in Lift) - K40012T

The ICON Vehicle Dynamics Stage 2 Suspension System for the 2021-2023 Ford Bronco features front and rear 2.5 EXP Series coilovers to yield increased wheel travel along with superior ride quality and suspension performance both on and off-road. 2.5 EXP Series coilovers combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP coilovers use a series of snap-ring grooves machined into the shock body to provide easily-selectable ride height adjustment from 1.375-3” of front lift and 1.5-2.25" of rear lift over stock on Bronco’s equipped with the OE HOSS 2.0 suspension package.

• One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
• Adjustable ride heights from 0-2” of front lift and 0-1.75" of rear lift over stock with the use of snap rings
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shafts
• Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
• Vehicle specific design for 2021-2023 Ford Bronco with HOSS 2.0 Suspension Package
• Vehicle specific tuned shocks for superior shock damping and vehicle control
• PTFE lined spherical bearings for extended longevity and minimal deflection
• CNC machined 6061 aluminum components with a black anodized finish
• 100% Bolt-on - no cutting or welding necessary for installation
• Utilizes factory coils and coil hardware
• Fully rebuildable and re-tunable
