ARB BP-51 Suspension Kit w/ UCA (FR 3 in/0-330 lb, RR 2 in/0 lb) For 2022+ Toyota Tundra - 3206K

Overview

Old Man Emu offers a range of tuned and matched integrated suspension kits to ensure the right suspension is selected for how the vehicle is outfitted and the conditions it will encounter. Old Man Emu suspension systems are designed to enhance ride quality, ride control, load-carrying capacity, and ride height. When building an off-road vehicle, it's best to notate the heavy parts that you plan to add. Heavy components will slowly begin to compress your suspension which results in vehicle sag. Choosing an Old Man Emu integrated suspension kit will avoid sag and ride discomfort as our engineers have tuned and matched suspension components for an range of different weights. Old Man Emu has an offering of 3 different shock absorbers to ensure that you can find an integrated suspension kit to suit your every demand, vehicle outfit and road condition. This suspension lift kit comes with Old Man Emu BP-51 shocks. Utilizing the latest off-road technology, the BP-51 is an user adjustable internal bypass shock absorber. With 10 levels of compression and 10 levels of rebound adjustment, BP-51 delivers unmatched comfort and control ; both on and off road. This suspension lift kit is tuned and matched for the Toyota Tundra to provide 3in of lift in the front, with an weight of 0-330lbs and provide 2in of lift in the rear with an weight of 0lbs, this kit includes an upper control arm.

POSITION SENSITIVE DAMPING
Damping increases as you get closer to the end zone, meaning you’ll experience increased control at end zones and comfort at ride height.

ADJUSTABLE
External, independent rebound and compression on-car adjustment allows fine tuning of ride comfort and control to suit varying vehicle, load and trip requirements.

QUALITY ALUMINIUM MATERIAL
51mm bore, 6061 grade aluminum shock absorber body with type III, hard anodized finish for increased heat dissipation and corrosion resistance.

BOLT-IN APPLICATION SPECIFIC
Every BP-51 is expertly engineered to bolt-in to your vehicle, meaning no fitting modifications are required and no adjustments.

Features & Benefits

• Tuned and matched suspension kit for increased comfort and control with or without added weight
• Old Man Emu BP-51 coilovers and shocks
• Internal bypass design technology providing position sensitive damping
• On-vehicle tuning with 10 levels of independent compression AND rebound adjustment
• Remote mounted reservoir to provide additional oil allowing for increased cooling and performance during extended periods of offroad use
• 6061 grade aluminum shock absorber body with type III, hard anodized finish for increased heat dissipation and corrosion resistance.
• Direct replacement for OE and aftermarket suspension systems

BP-51 (BYPASS 51MM DIAMETER BORE) SHOCK ABSORBERS

The new BP-51 range of high performance, bypass shock absorbers is the result of an exhaustive development process aimed at delivering the ultimate in both comfort and control. Designed, developed and tested entirely in-house by ARB’s team of Old Man Emu ride engineers, BP-51 shock absorbers are vehicle-specific and utilize existing mounting locations to provide easy installation without the need for additional vehicle modification. Unlike most other adjustable shock absorbers, which provide adjustment for compression only, the BP-51 range allows on-vehicle, independent adjustability of both rebound and compression to offer class-leading ride customization that can be tailored to an individual vehicle or trip requirements.

BYPASS TECHNOLOGY
In addition to the velocity sensitive damping used in most shock absorbers, where the faster the piston moves, the higher the level of damping is generated, BP-51 shock absorbers also generate damping dependent on the position of the piston within the shock absorber’s body via their bypass design. While most shock absorbers only generate damping based on fluid flowing through the piston, the BP-51 offers an alternative path from one chamber to the other, around the piston in the form of bypass passages. Some fluid flows through the piston and some fluid bypasses around the piston in the bypass passages. This results in an ability for the shock absorber to provide the best of both worlds, with a comfortable and compliant ride during normal driving and a more controlled ride over more challenging terrain. With greater levels of damping generated at each end of the stroke, the piston slows as it approaches full compression and extension, preventing harsh topping out against the bump stop and allowing larger bumps and corrugations to be absorbed more easily.

DEVELOPMENT AND MANUFACTURING
All BP-51 shock absorbers are manufactured in-house by ARB. In order to achieve this, significant investment has been made in state-of-the-art machining and hard anodizing equipment, allowing ARB total control of the process to ensure the highest possible quality. BP-51 shock absorber bodies are manufactured using aircraft grade (6061) anodized aluminum to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance. Extensive lab, real world and destructive testing have been undertaken during the development process to ensure that reliability, longevity and performance all meet ARB’s impeccable standards.

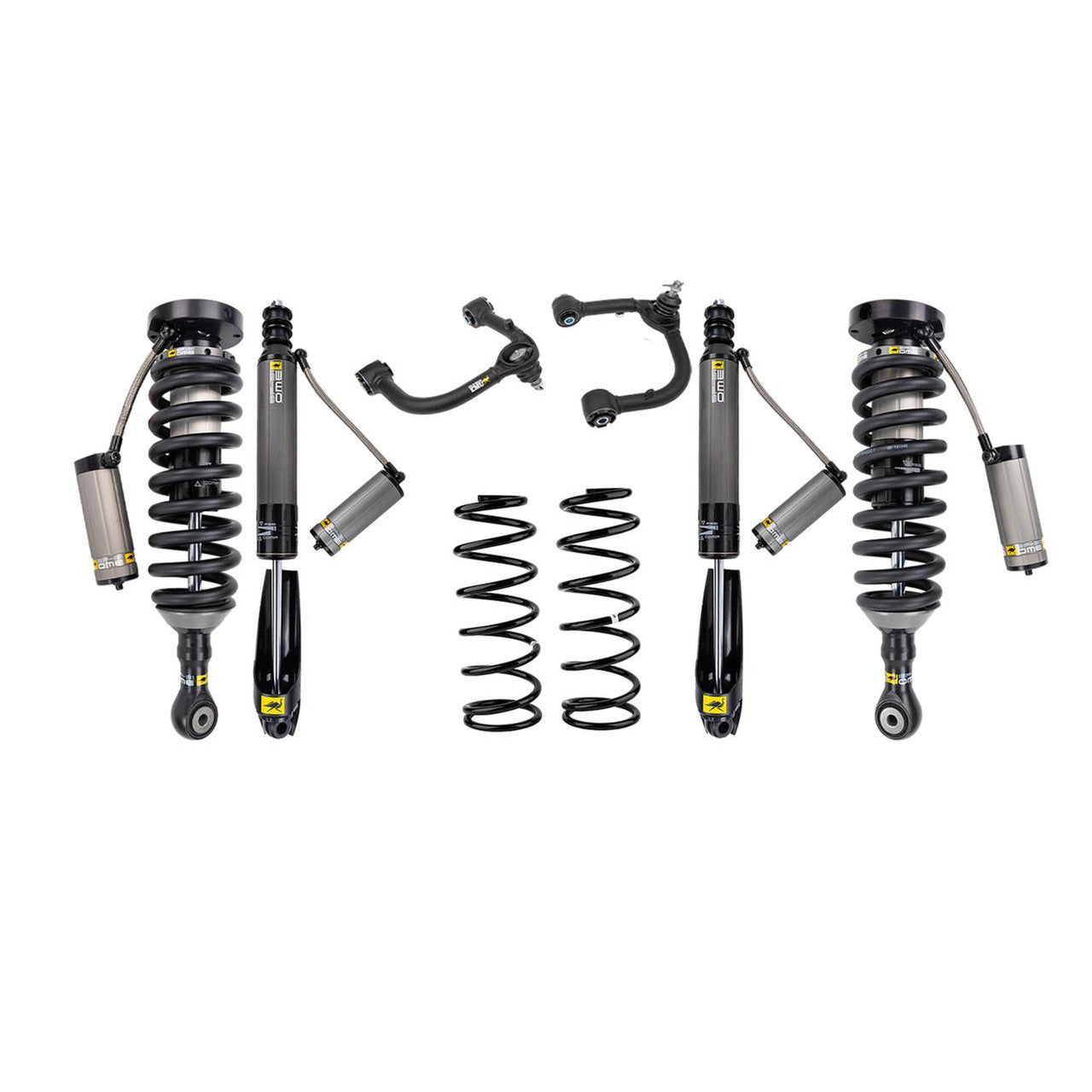

Kit Components

• 2860 Rear Coil Spring Set, 1
• BP5160068 BP-51 Shock Absorber Rear, 2
• BP5190026L BP-51 Coilover Strut Front Left, 1
• UCA0016 Upper Control Arms, 1
• FK132 Brake Line Spacer Kit Rear, 1
• FK131 Sway Bar Spacer Kit Front, 1
• VM80010072 BP-51 Shock Fitting Kit Rear, 1
• VM80010071 BP-51 Shock Fitting Kit Front, 1
• BP5190026R BP-51 Coilover Strut Front Right, 1

Specifications

• Rear Lift: 2 in
• Rear Load: 0 lb
• Front Lift: 3 in
• Front Load: 0-330 lbs
• Color: Grey
• Design: BP-51
• Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Warranty: 3 YR
