DV8 Offroad Rear Speaker & Light Mount Bar For 2021-24 Ford Bronco 4-Door - BRSB-01

2021-2024 Ford Bronco | Rear Speaker & Light Mount

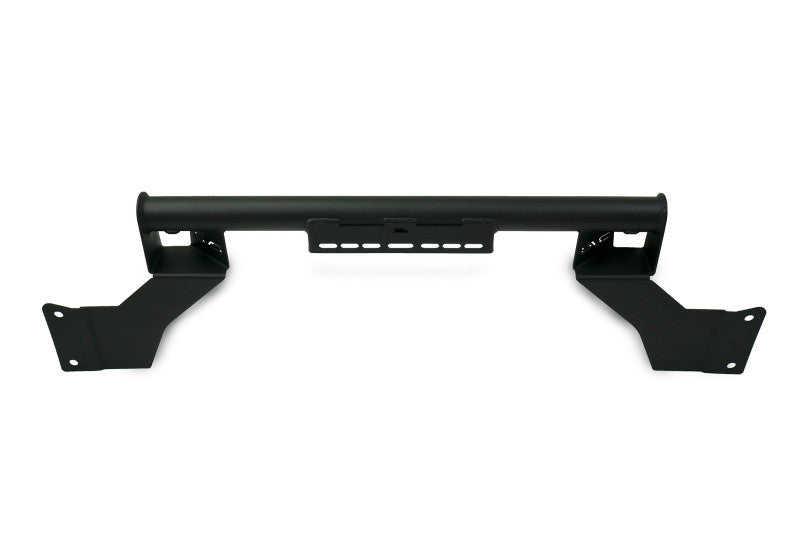

This crossbar was designed to provide your Bronco additional mounting options for rear facing LED lights and speaker cans, or a speaker bar. It mounts directly to OEM locations with provided hardware, and is functional with your hard or soft top on or off.

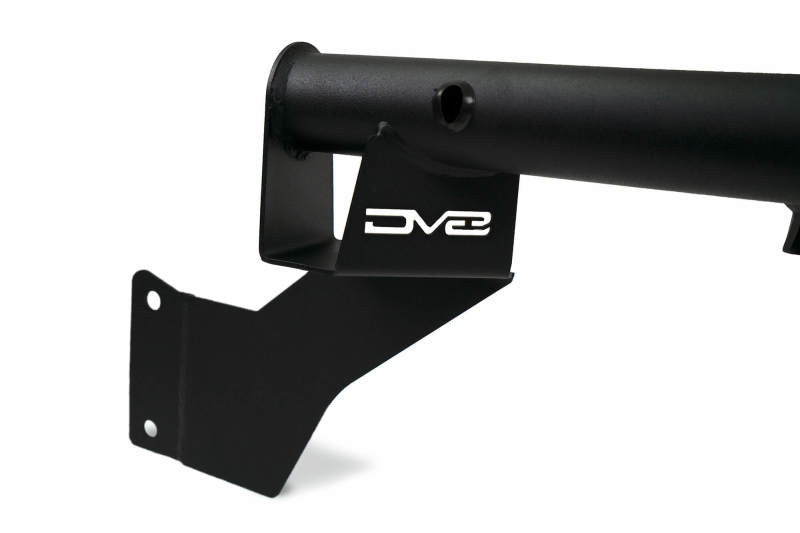

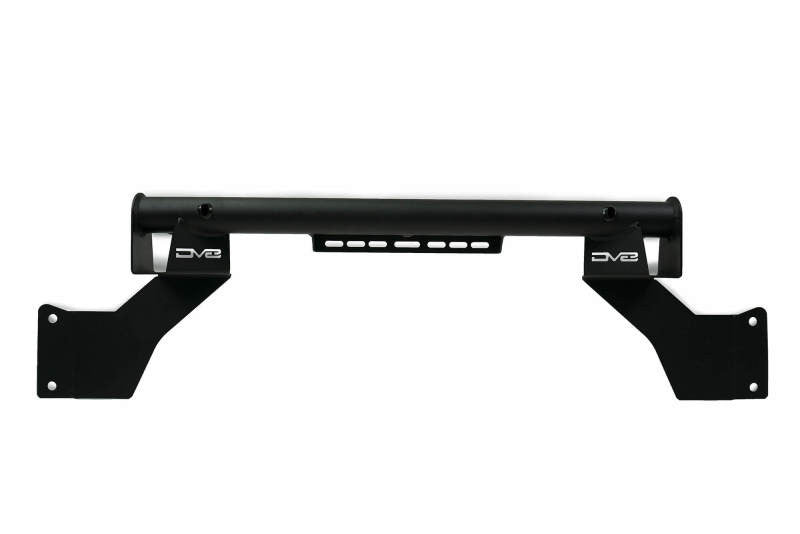

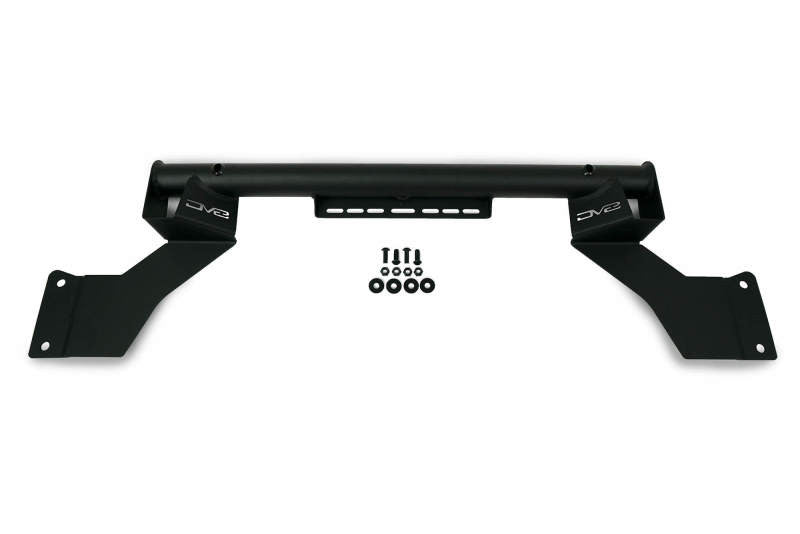

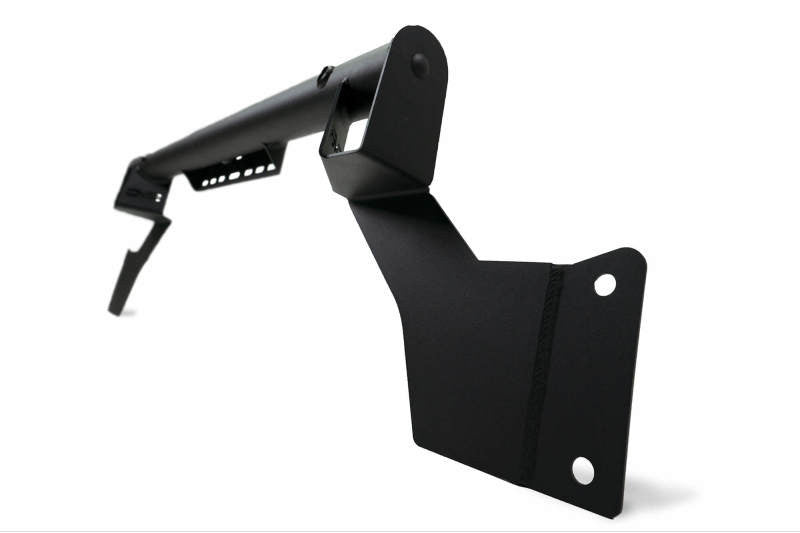

The bar measures 29-inches in total length, and is 2-inches in diameter. There is a 10-inch slotted flat mount in the middle of the bar. 4 holes, 2 towards each end, allow you to run wiring hidden inside the bar. It is finished in a Micro-Texture Black Powder Coat, which blends well with the OEM trim.

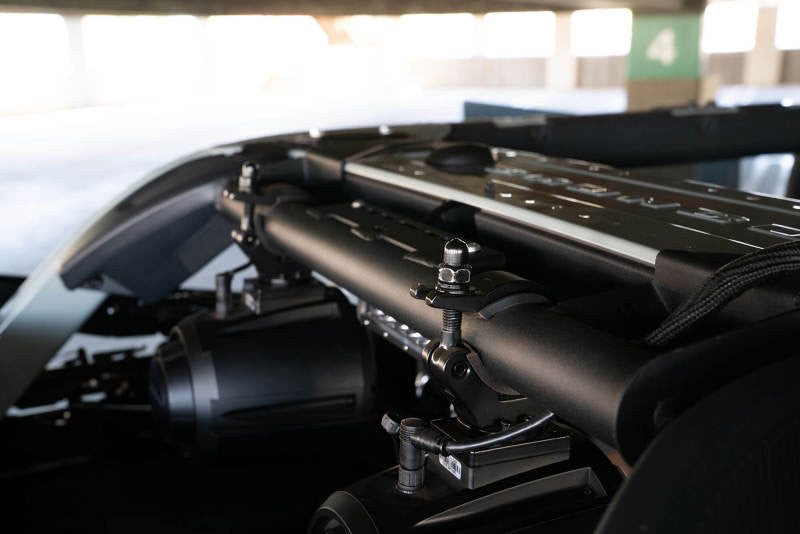

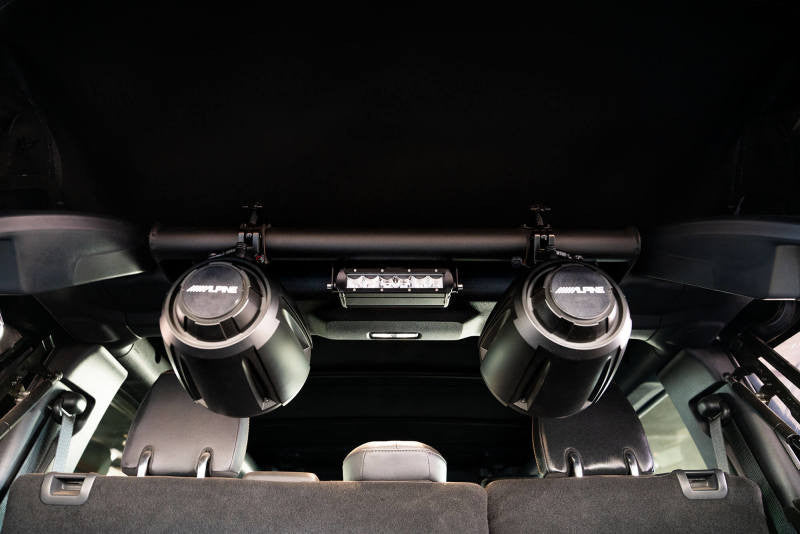

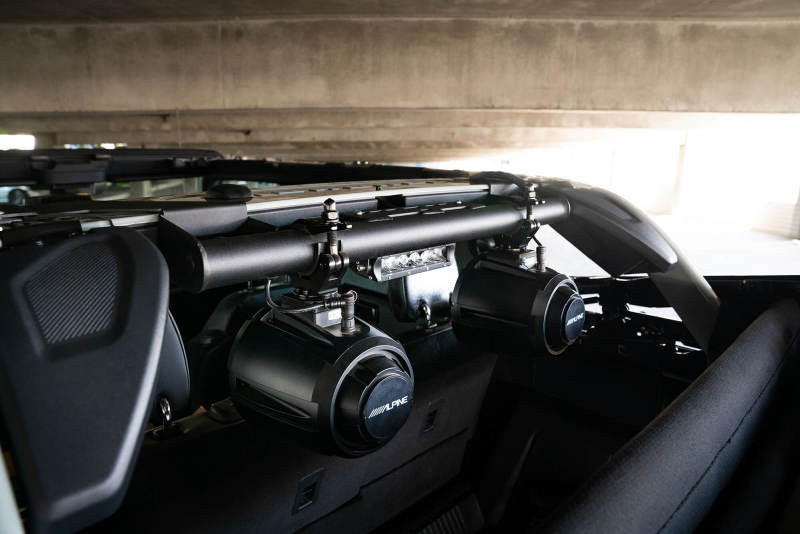

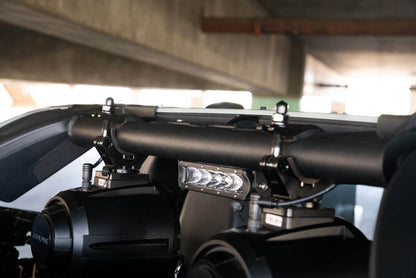

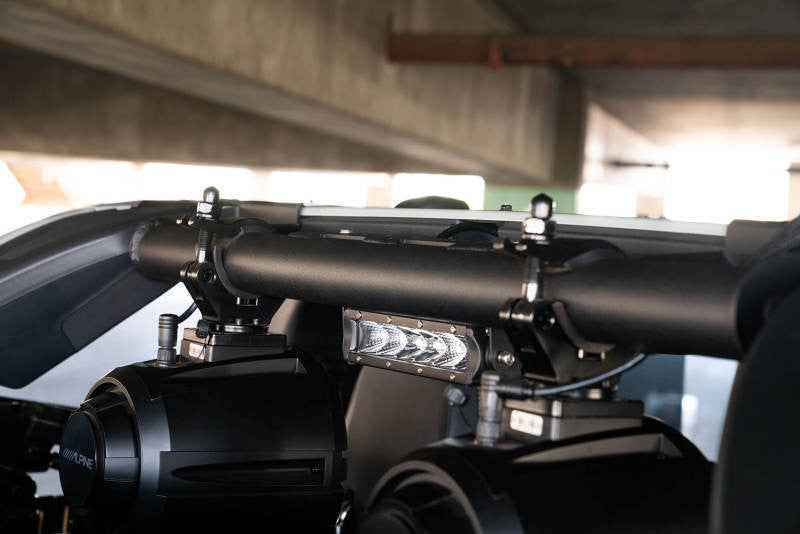

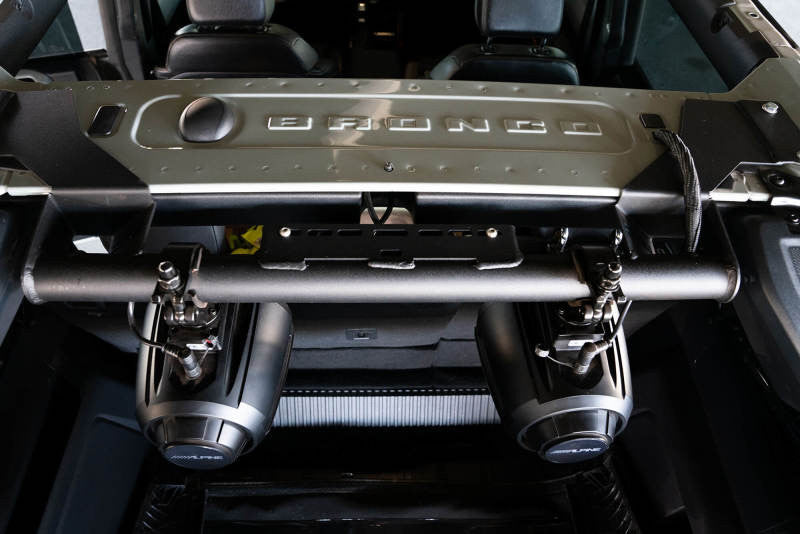

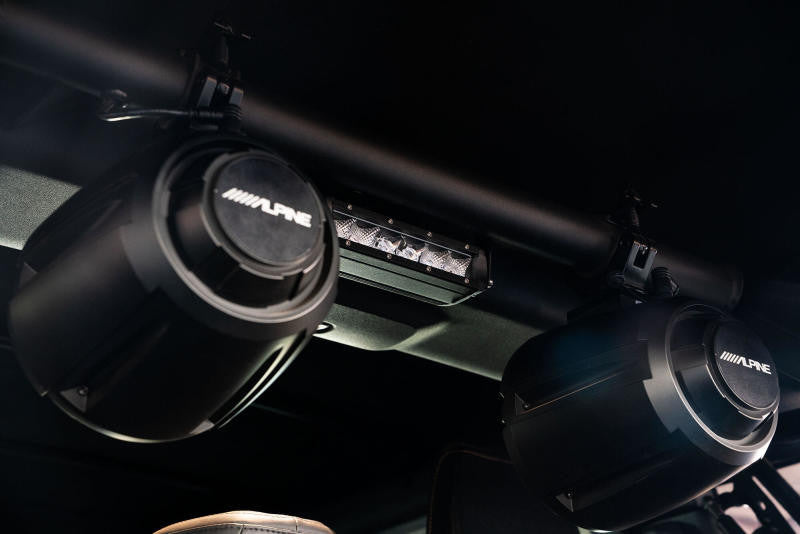

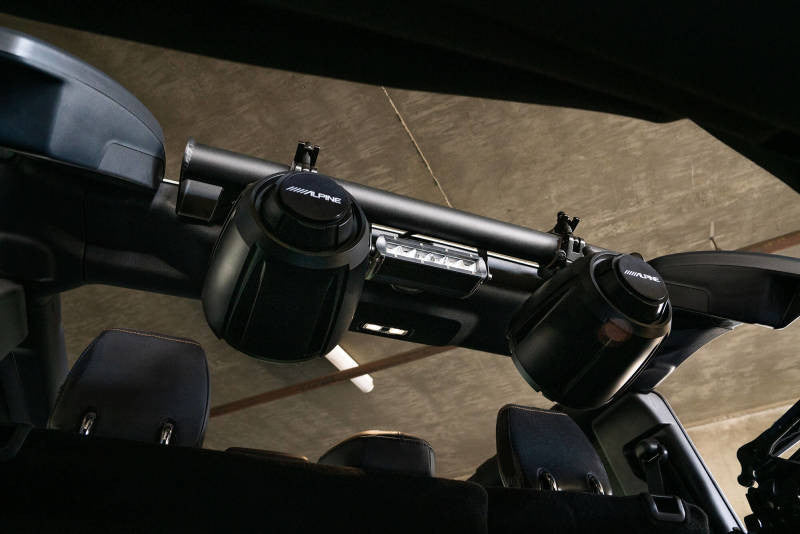

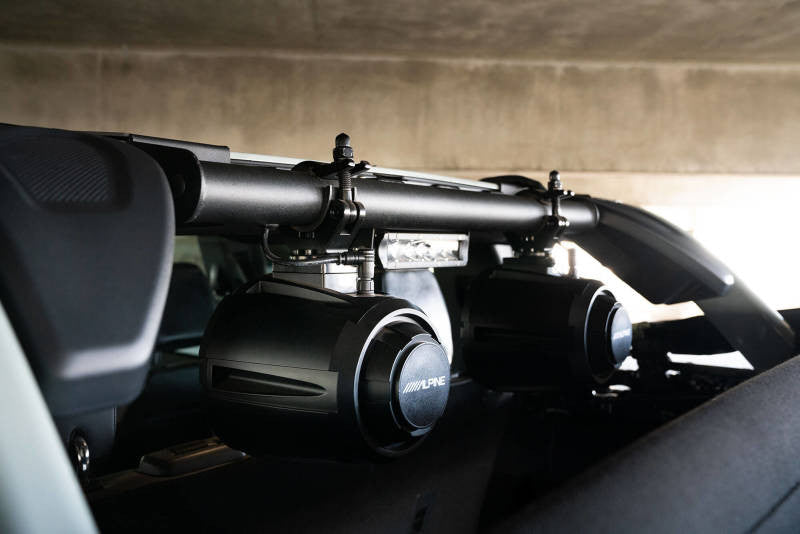

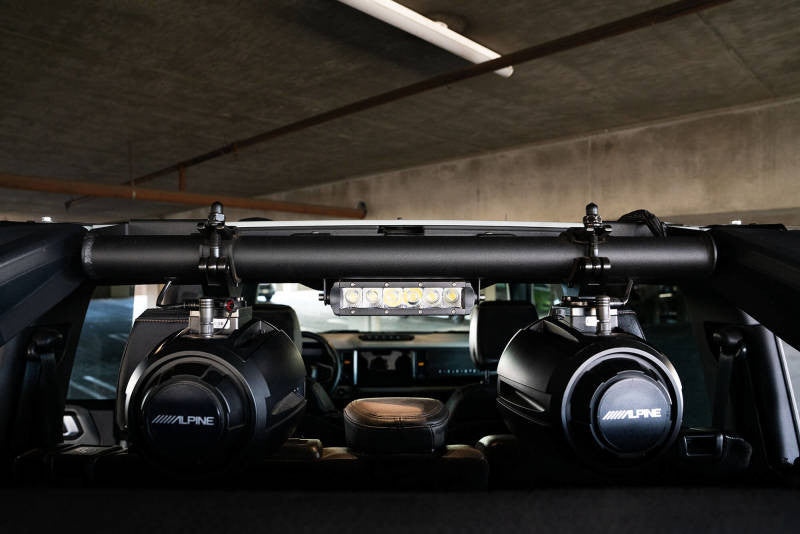

There are several possible configurations you can run. Two speaker cans with roll bar clamps can be installed, with up to a 6-inch light bar or two 3-inch pod lights on the flat mount. You can run a 20-inch light bar across the length of the bottom if utilizing the back rail mounts on the bar. Alternatively, a speaker bar up to 28-inches wide with roll bar clamps can be mounted across the bottom of the bar.

Note: This was designed for the 4-door Bronco models only, it does not fit 2-door models.

Key Features:

• Designed for Speaker Cans or a Speaker Bar with Roll Bar Clamp Mounts

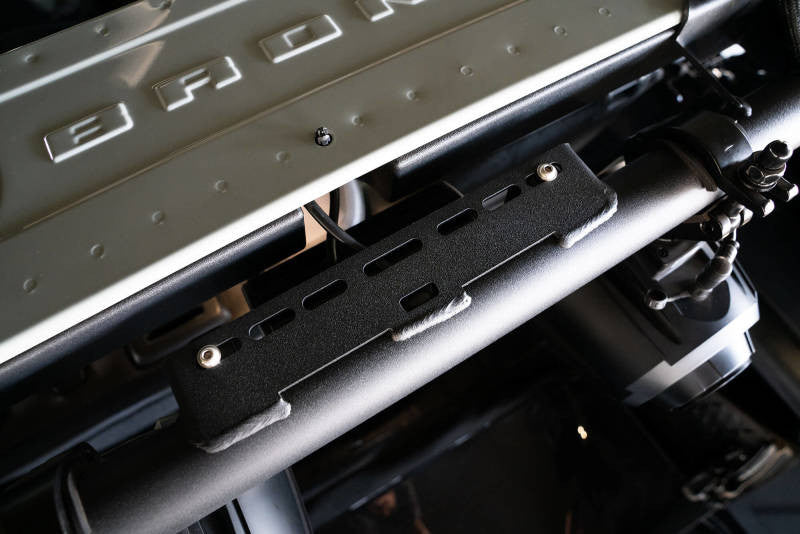

• 10” Flat Mount for Light Bar or Light Pods on Top or Below Bar
• 4 Hidden Wiring Access Points
• 3mm Plate Steel & 2” x 1.5mm Tube Steel
• Micro-Texture Black Powder Coat
• Installs to OEM Locations
• Retains OEM Antenna Functionality

Installation

PDF Instructions
