ICON 03-09 Toyota 4Runner/FJ 0-3.5in Stage 7 Suspension System w/Tubular Uca - K53057T

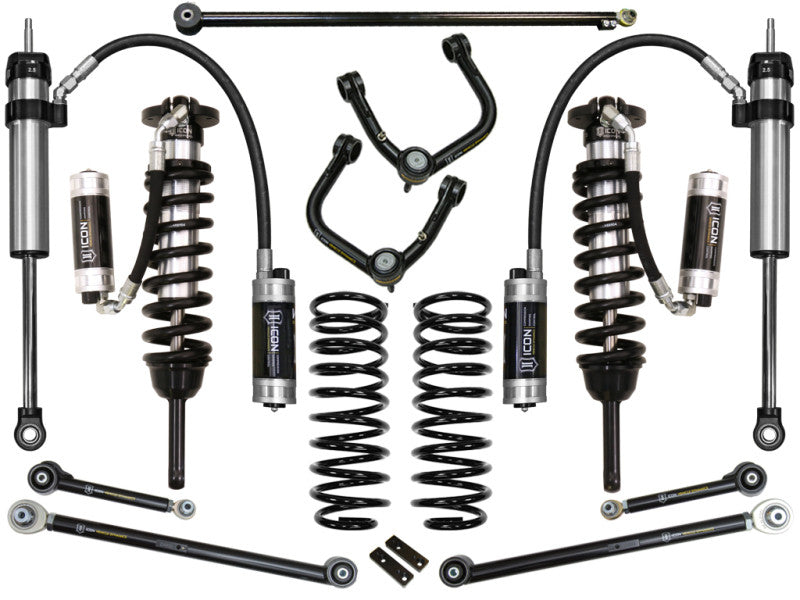

ICON’s 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser Stage 7 suspension system provides the ultimate level of on and off-road performance of the vehicle. This system includes all of the components featured in the Stage 6 setup – ICON tubular Delta Joint upper control arm kit, 2.5 Series Remote Reservoir front coilovers and 2.5 Aluminum Series rear shocks, 2” rear coil springs, adjustable rear track bar, and a tubular rear upper and lower link arm kit - but sees the addition of ICON's Compression Damping Control Valve (CDCV) front and rear. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable “fade” occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON’s “Bump Zone” technology which significantly increases damping ability in the last 2” of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain. ICON's tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.

• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Tubular upper and lower rear links offer increased strength, improved geometry, and pinion angle adjustment
• CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
• Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable rear track bar proper rear axle placement under vehicle
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Adjustable coilovers provide 0-3.5" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
