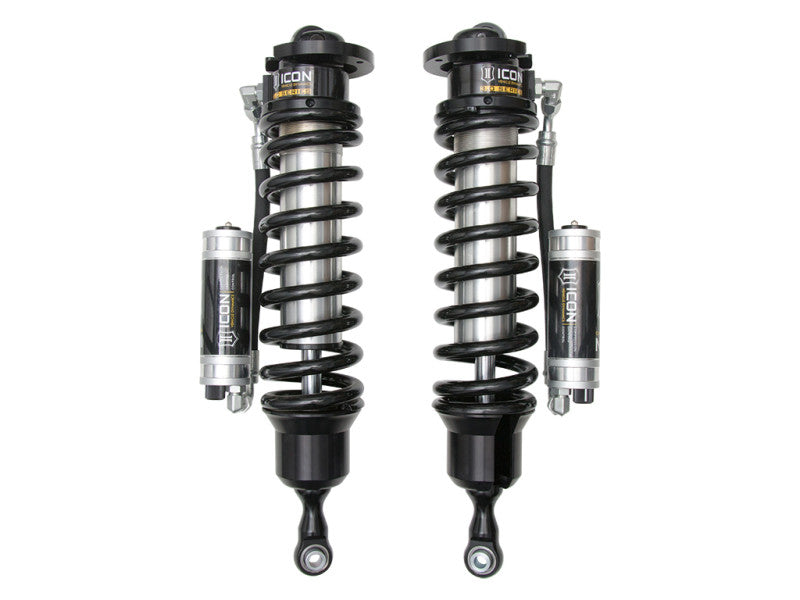

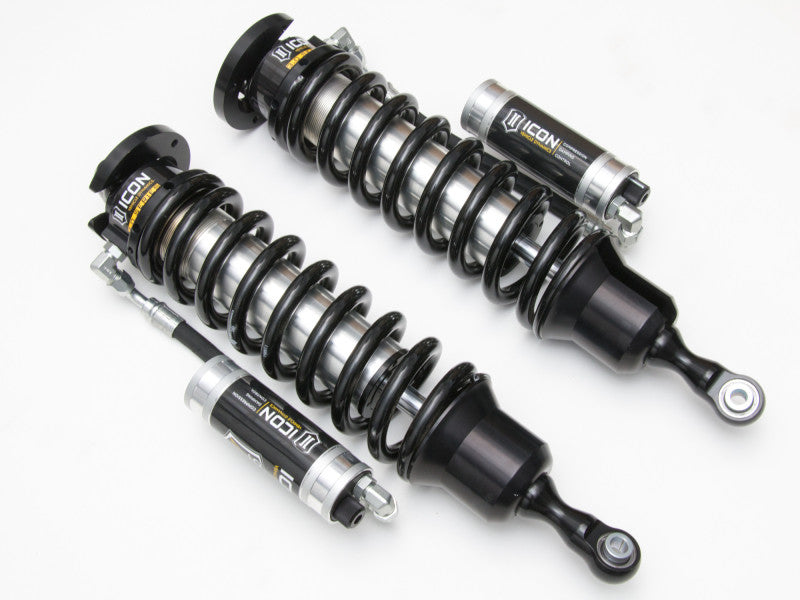

ICON 2008+ Toyota Land Cruiser 200 3.0 Series Shocks VS RR CDCV Coilover Kit - 58765

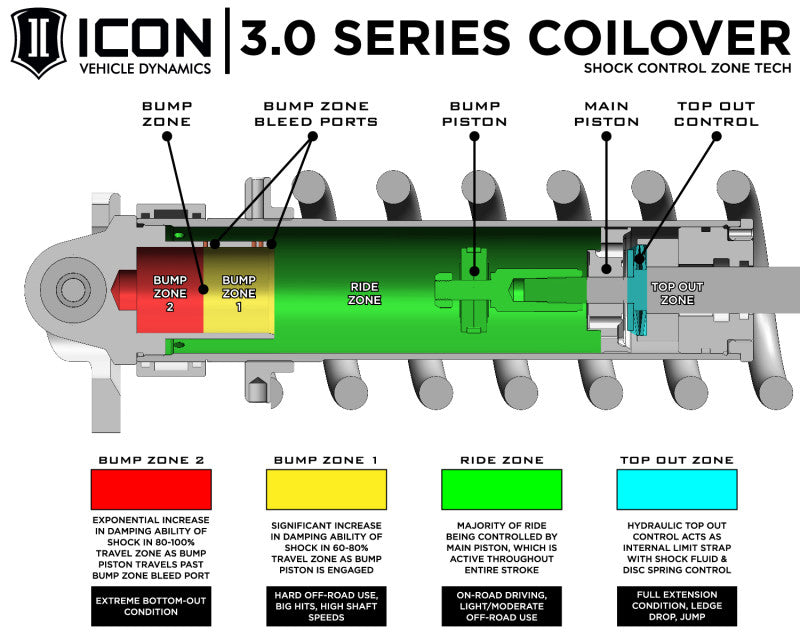

Compared to the 2.5” diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.

• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
• ICON’s multi-stage, tuneable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
• Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
• 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Significant increase in damping ability for excellent performance in extreme off-road conditions
• High quality ICON-engineered Eibach springs offer increased travel and performance
• PTFE lined COM12 spherical bearings ensure maximum strength and durability
• Multi stage CAD plated shock body with hard anodized piston and top cap
• Direct bolt-in to OEM shock location makes for an easy install
• Adjustable coilovers provide 2.25-3.5” of front lift height
• Heavy duty 1” CNC machined shock shafts
• Fully serviceable
