ICON 2015+ Ford F-150 4WD 2-2.63in Stage 5 Suspension System w/Billet Uca - K93085

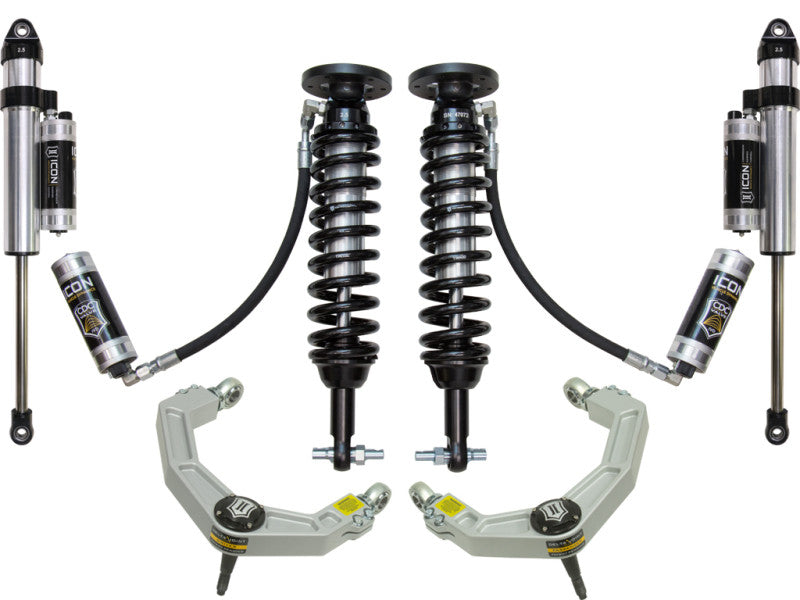

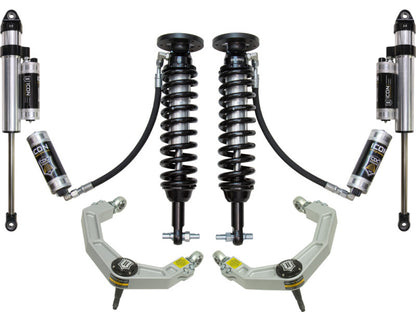

ICON Vehicle Dynamics 2015-2020 Ford F150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 5 system includes vehicle-specific tuned 2.5” coilover shocks featuring remote reservoirs (with CDC Valves) for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.5” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. Billet Aluminum upper control arms on the F-150 not only add strength and durability, but help retain factory alignment spec range increasing caster over stock. ICON 2.5 Aluminum Series piggyback reservoir rear shocks (with CDC Valves) utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-2020 F-150 4WD Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Billet Aluminum Upper Control Arms for added strength, durability, and alignment spec range
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Unique valving developed for the lighter weight of the 2015-2020 F-150
• ICON CDC Valve allows quick and easy end-user compression adjustment
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK rod end bearings for extended longevity and minimal deflection
• Bolt-on system - No cutting or welding necessary for install
• Adjustable coilovers from 2-2.63" of lift height
• High strength alloy CNC machined lower bar pin
