ICON 2022+ Toyota Tundra 2-3.5 Stage 4 Suspension System Tubular - K53194T

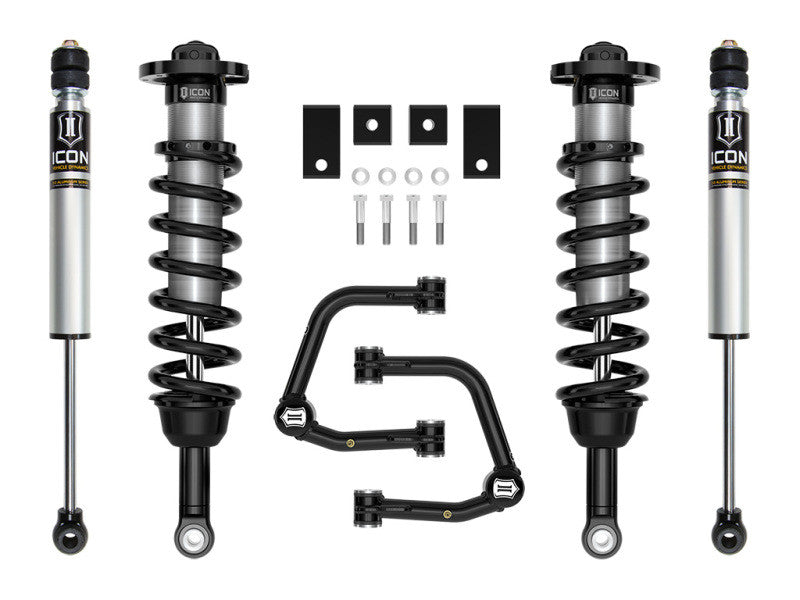

The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2022-2025 Toyota Tundra builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of ICON tubular front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs and a taller front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shock and tubular control arm combo, a sway bar drop kit for the front of the truck is included along with our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

• Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Included sway bar drop brackets reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2022-2025 Toyota Tundra
